FTMHlift
Lift Type Hydraulic Manipulators

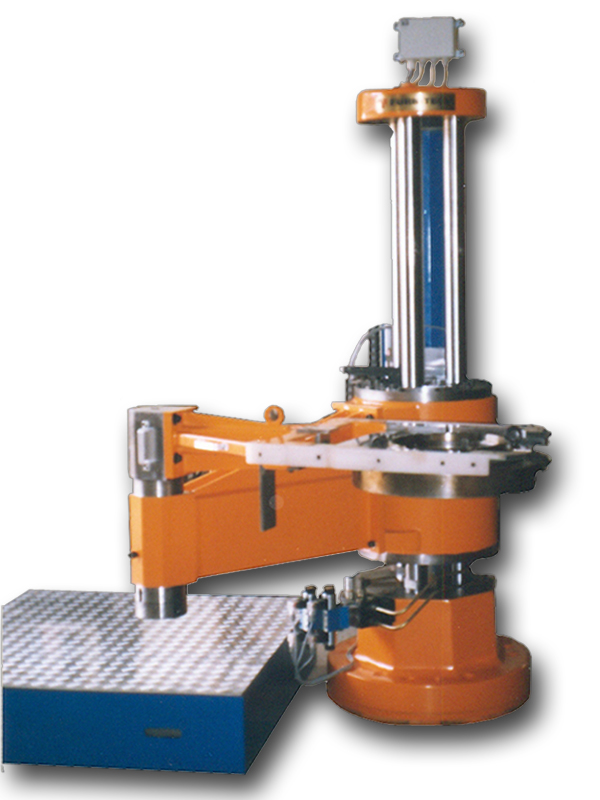

Fixed Column Mounted

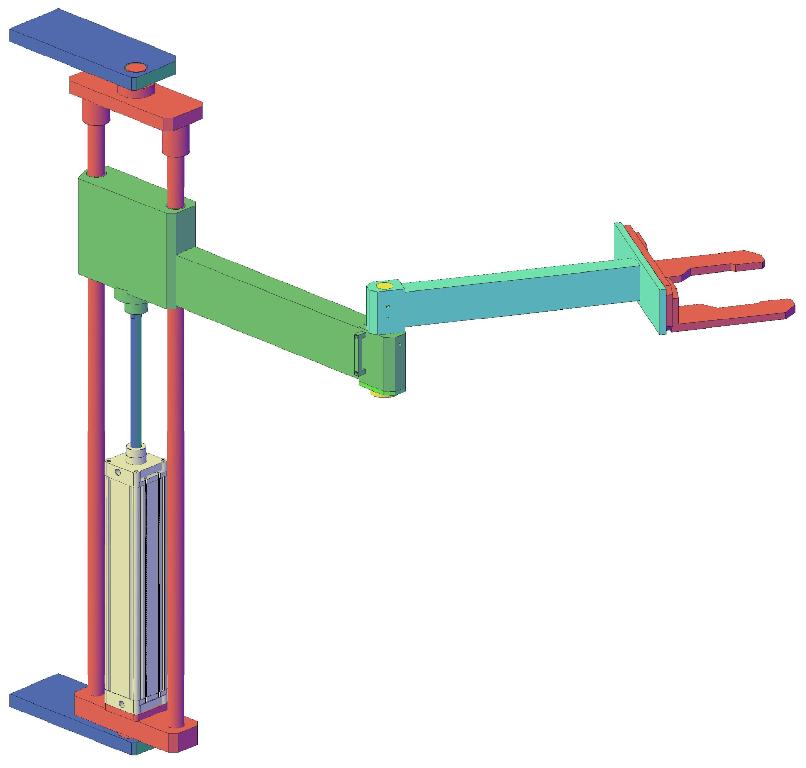

 Flange Mounted on Wall
FTMHlift –Lift type Hydraulic  manipulators are suitable for heavy work loading and unloading purpose for machineries like CNC Turning, Milling, Grinding and Presses.

FTMHlift  is provided with transmission system combined with a Hydraulic Cylinder to handle loads up to 4000 kgs and thanks to the special gripping tools that can be integrated.The cylinder force is controlled through control buttons and levers. The operator can change the load level simply operating the Hydraulic control buttons/levers.

Also this FTMHlift manipulators can be installed on Fixed column and Flange Mounted on Wall type.
   ​Technical Specifications:
  • Net Capacity: Up to 4000 Kgs
  • Working Radius: Up to 2000 mm
  • Vertical Stroke: Up to 1500 mm
  • Vertical Lifting speed: Max 100 mm/second
  • Column Axle: Max 300°  rotation
  • Intermediate Axle: Max 300° rotation
​Benefits:
  • Flexible device lift integration
  • Easy work loading & unloading
  • Reduce operator fatigue
  • Increase productivity
  • Quiet operation

FTMHlift 250

FTMHlift 500

FTMHlift 1000

FTMHlift 2000

FTMHlift 4000

Work Gripping System
Axis Braking System
Work Tilting System
