Screw Type Motorized Manipulators

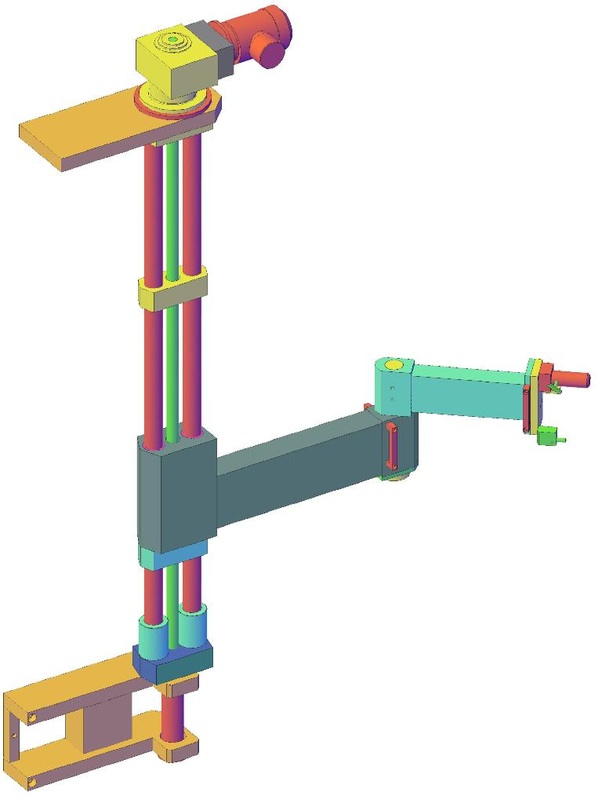

Flange Mounted on Wall

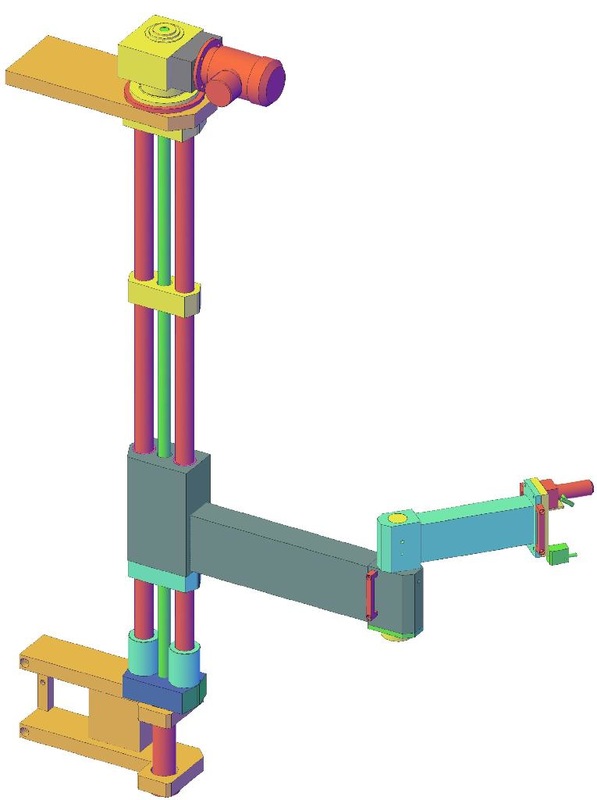

Flange Mounted on Wall
​FTMMscrew –Screw type motorized manipulators are simple and economical design, suitable for heavy work loading and unloading purpose for machineries like CNC Turning, Milling, Grinding and Presses.

​FTMMscrew is provided with transmission system combined with geared motor and ball screw arrangements to handle loads up to 500 kgs and thanks to the special gripping tools that can be integrated. The geared motor is electrically controlled through control buttons and levers. The operator can change the load level simply operating the electrical control buttons/levers.

Also this FTMMscrew manipulators can be installed on Flange mounted on wall type.
Technical Specifications:
  • Net Capacity: Up to 500 Kg
  • Working Radius: Up to 2000 mm
  • Vertical Stroke: Up to 1800 mm
  • Vertical Lifting speed: Max 100 mm/second
  • Column Axle: Max 300°  rotation
  • Intermediate Axle: Max 300° rotation
​Benefits:
  • Flexible device lift integration
  • Easy machine loading & unloading
  • Increase productivity
  • Reduce operator fatigue
  • Quiet operation

FTMMscrew 50

FTMMscrew 100

FTMMscrew 200

FTMMscrew 300

FTMMscrew 400

FTMMscrew 500

Work Gripping System
Axis Braking System
Work Tilting System
