Simple Equipments for Heavy Handlings.  The art of reducing human exertion

 FTMMwire
Wire Type Motorized Manipulators

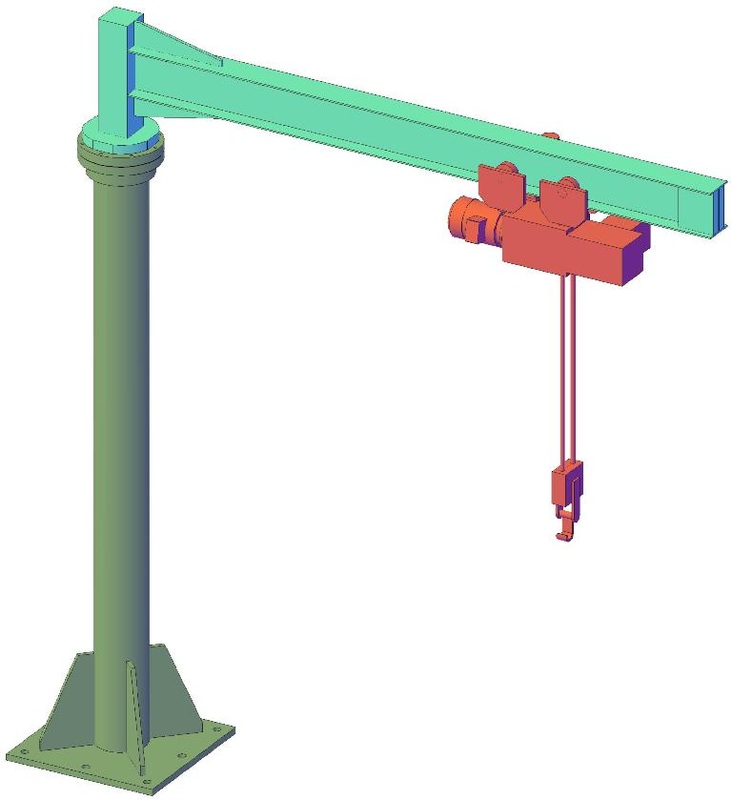

Fixed Column Mounted

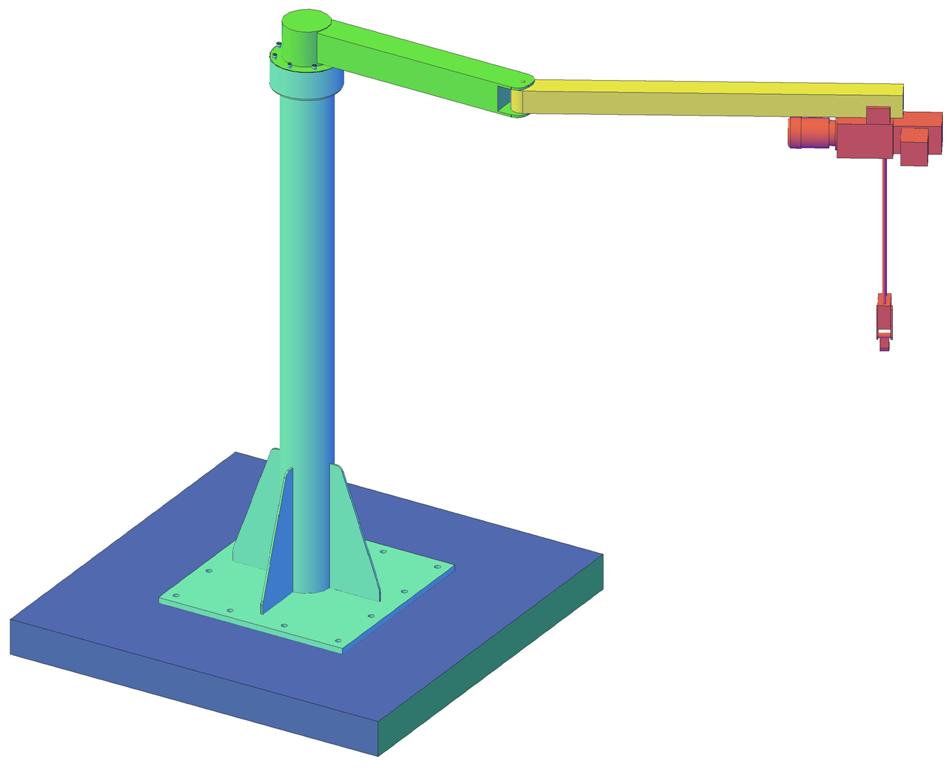

Column Mounted on Base

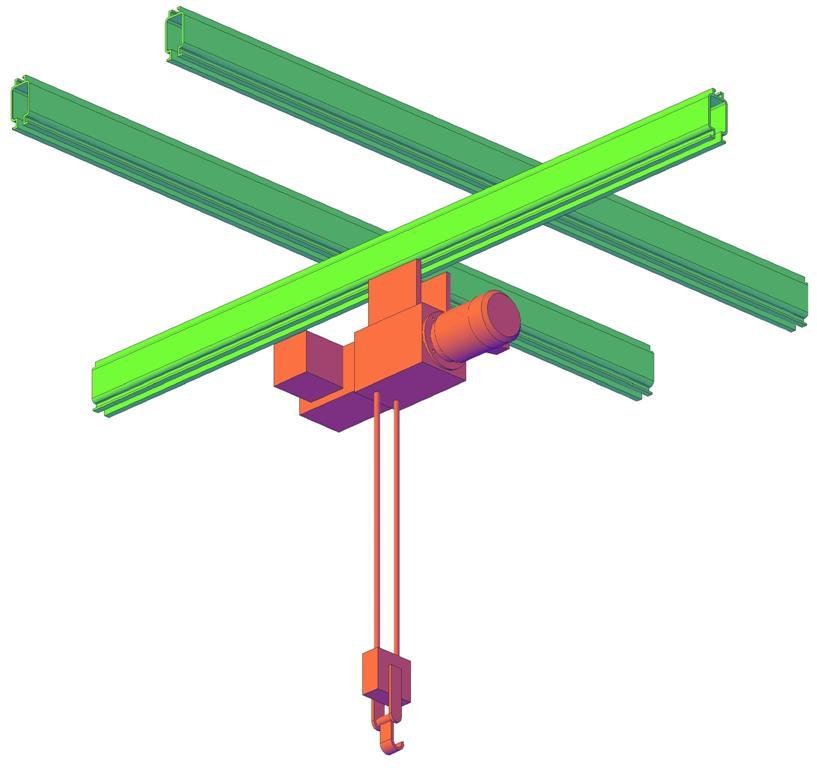

Overhead On Rails
​FTMMwire - wire rope type motorized manipulators, manually rotated in column or wall-mounted models are designed to handle goods inside a plant, in a large square or to serve operative positions.
​
FTMMwire manipulators are available in standard models for load ranges from 100 kg to 2000 kg. it allows the handling of many kind of products in easy and safe way,  thanks to the special gripping tools that can be integrated.

​FTMMwire  is provided with single/double wire rope transmission system combined with a motor setup.

Also this FTMMwire manipulators can be installed on column, both mounted fixed to the floor and on transportable self standing base, or wall mounted.
Technical Specifications:
  • Net Capacity: Up to 2000 Kgs
  • Working Radius: Up to 3500 mm
  • Vertical Stroke: Up to 1800 mm
  • Vertical Lifting speed:Max 100 mm/second
  • Column Axle: Max 300°  rotation
  • Intermediate Axle: Max 300° rotation
​Benefits:
  • Reduce operator fatigue
  • Flexible device lift integration
  • Easy work loading & unloading
  • Increase productivity
  • Quiet operation

FTMMwire 100

FTMMwire 250

FTMMwire 500

FTMMwire 1000

FTMMwire 2000

Work Gripping System
Axis Braking System
Work Tilting System
