Simple Equipments for Heavy Handlings.  The art of reducing human exertion

FTMPwire
Air Balancer Type Wire Rope Manipulators

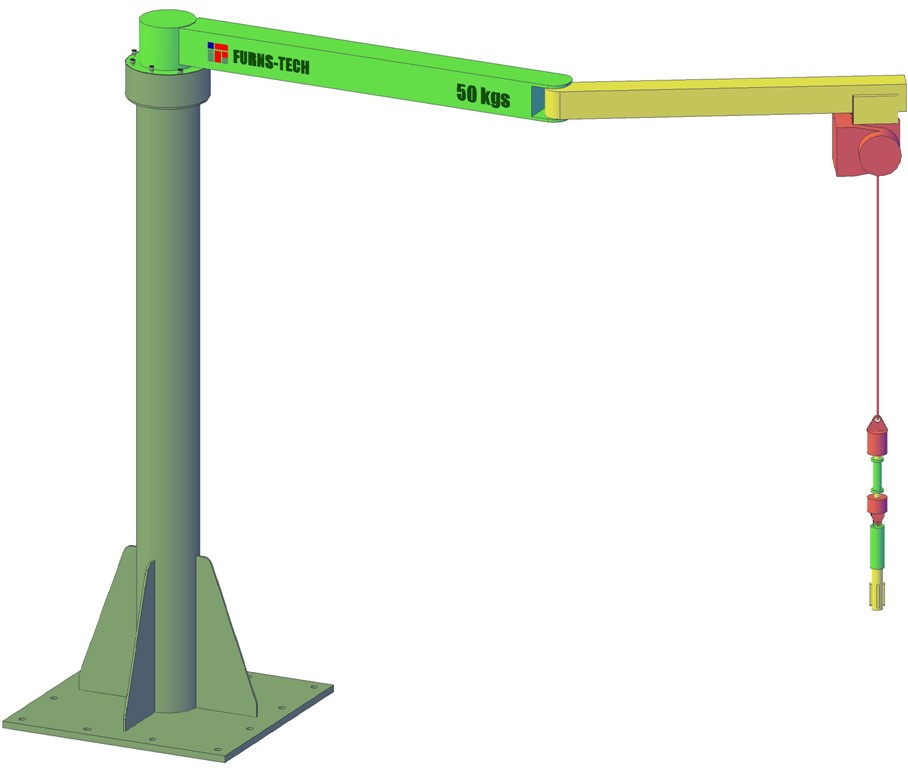

 Fixed Column Mounted

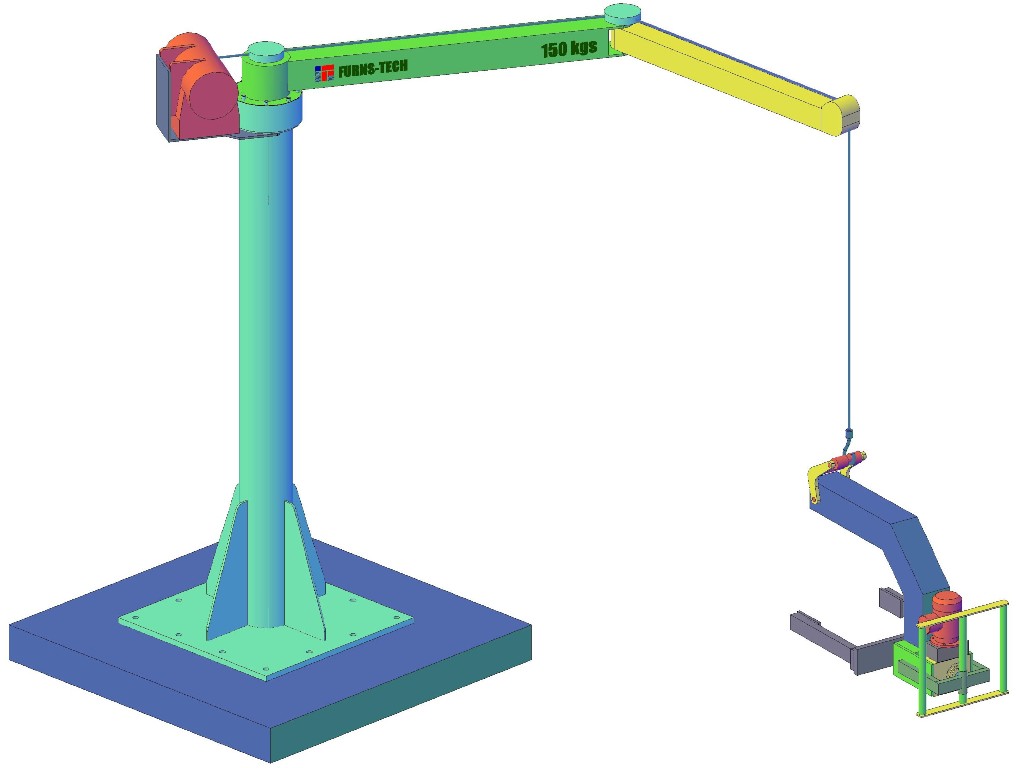

Column Mounted on Base

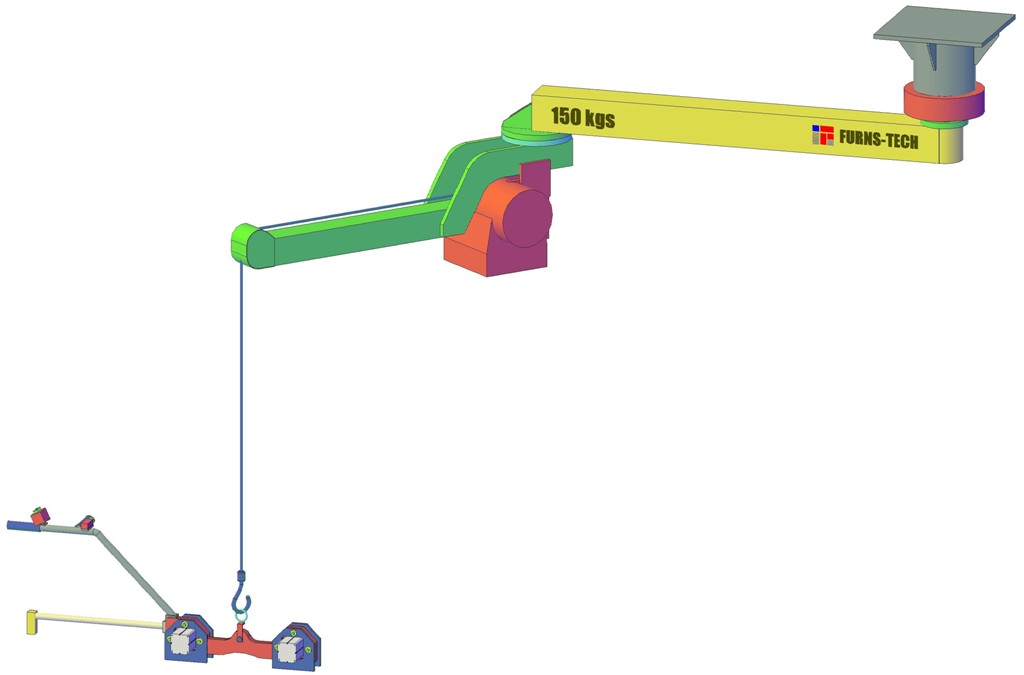

Fixed Overhead

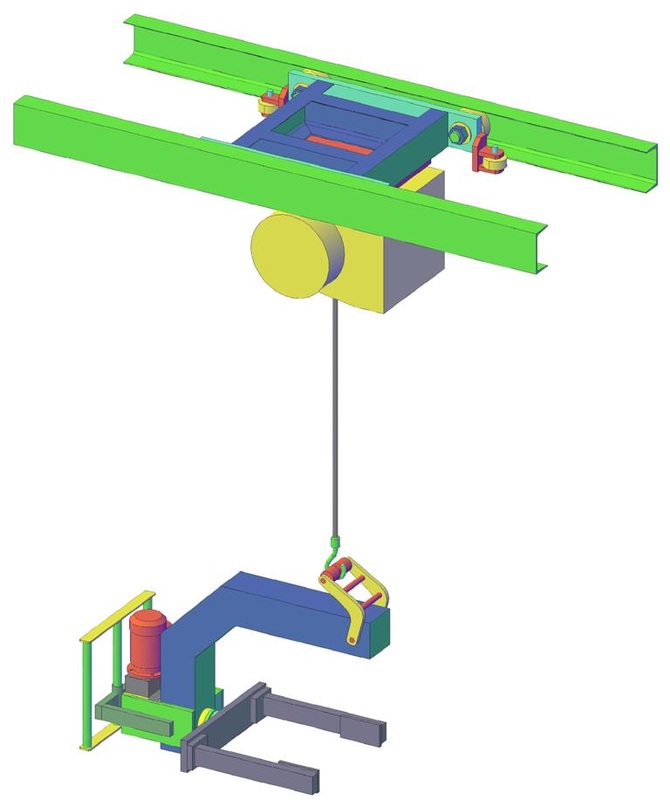

Overhead on Rails​
​FTMPwire –Wire rope type manipulators with vertical movement and ability to handle load extremely well and precise in any direction.This kind of manipulator is developed in recent years, especially in the short, intensive lifting showing the occasion better than any other conventional lifting equipments.
These manipulators are ideal for smooth lift and lower of off-center loads.

​FTMPwire  is provided with single/double wire rope transmission system combined with a Pneumatic Cylinder.

FTMPwire is the simplest of the family, light and easy to handle for loads up to 200 kgs. it allows the handling of many kind of products in easy and safe way,  thanks to the special gripping tools that can be integrated.

If needed FTMPwire manipulator can be provided with a "sensitive" handle, which allows to operate on variable weight products just acting on it.

Also this manipulator can be installed on column, both mounted fixed to the floor and on transportable self standing base, or overhead fixed or on rails.
 ​Technical Specifications:
  • Net Capacity: Up to 200 Kg
  • Working Radius: Up to 3500 mm
  • Vertical Stroke: Up to 1800 mm
  • Vertical Lifting speed: 0,2 to 0,5 meters/second
  • Column Axle: Max 300°  rotation
  • Intermediate Axle: Max 300° rotation
  • Supply: From 5 to 6 Bar of clean, dry and oil free compressed air
​Benefits:
  • Flexible device lift integration
  • Reduce operator fatigue
  • Easy work loading & unloading
  • Increase productivity
  • Quiet operation

FTMPwire 050

FTMPwire 100

FTMPwire 150
FTMPwire 200

Work Gripping System
Axis Braking System
Work Tilting System
Added safety measure, Hanged load will not fall even if the air supply is cut off or when  hoses are broken.
